PCB assembly (PCBA) is the process of attaching electronic components to a printed circuit board (PCB) to create a functional electronic circuit. It involves soldering components like resistors, capacitors, integrated circuits, and connectors onto the board, either manually or through automated processes like surface-mount technology (SMT) or through-hole technology (THT). The assembly includes steps like solder paste application, component placement, soldering, and inspection to ensure the board meets design specifications and functions correctly.
// Full Turn-Key PCB Assembly Services
Premier PCB Assembly Services: From Rapid Prototypes to Large-Scale Production with Precision and Efficiency
In the world of electronics, Printed Circuit Boards (PCBs) are the backbone of nearly every device we use today. From tiny sensors to massive machinery, PCB assembly plays a vital role in bringing ideas to life. Getting it right can make or break a product’s success. That’s why working with a trusted PCB assembly partner, equipped with advanced technology, matters more than ever.
Our company offers a wide range of PCB assembly services – from quick prototypes to large production runs. With 4 state-of-the-art SMT lines, we combine speed, accuracy, and quality in every project. Our “Fast Track“ line ensures your product reaches the market faster.
PCB Assembly Services
- PCB Prototyping
- Low Volume PCB Assembly
- High Volume PCB Assembly
- Quick-Turn PCB Assembly
- Turnkey PCB Assembly
- Partial Turnkey Assembly
- Consignment PCB Assembly
- Kitted PCB Assembly
- BGA PCB Assembly
- PCB Conformal Coating
- Lead-Free PCB Assembly
- Lead-Based Assembly
- RoHS-Compliant PCB Assembly
- PCB Potting/Encapsulation
- Box Build PCB Assembly
- PCB Assembly Rework
// Capabilities Scope
Our PCB Assembly Service Capabilities
Types of Assembly Services
- Surface Mount Technology (SMT)
- Through-Hole Technology (THT)
- SMT & THT mixed
- 2-sided SMT and THT assembly
Components
- Passives parts, smallest size 0201
- Fine pitch to 8 Mils
- BGA, uBGA, QFN, POP
- Connectors and terminals
Component Package
- Reels
- Cut tape
- Tube and tray
- Loose parts and bulk
PCB Dimensions
- Smallest board size: 0.2" x 0.2"
- Largest board size: 24" x 18"
PCB Shape
- Rectangular
- Round
- Slots and cut outs
- Complex and Irregular
PCB Type
- Single, double-sided and multilayer
- Rigid and flexible
- Rigid-Flex
- Ceramic
Electrical Testing
- X-ray
- AOI / 3D AOI
- 3D SPI
- ICT
- Functional testing
Design File Format
- Gerber RS-274X
- BOM (Bill of Materials) (.xls, .csv, . xlsx)
- Centroid (Pick-N-Place/XY file)
Turnaround Time
- 1-5 days for only PCB assembly
- 10-16 days for turnkey PCB assembly
PROTOTYPES TO LARGE-SCALE PRODUCTION ASSEMBLY SERVICES
Our PCB assembly services fit every project stage. Starting with quick prototypes, we help you test ideas efficiently. When ready, we scale up for small runs or full production.
No matter your project size, we adapt.

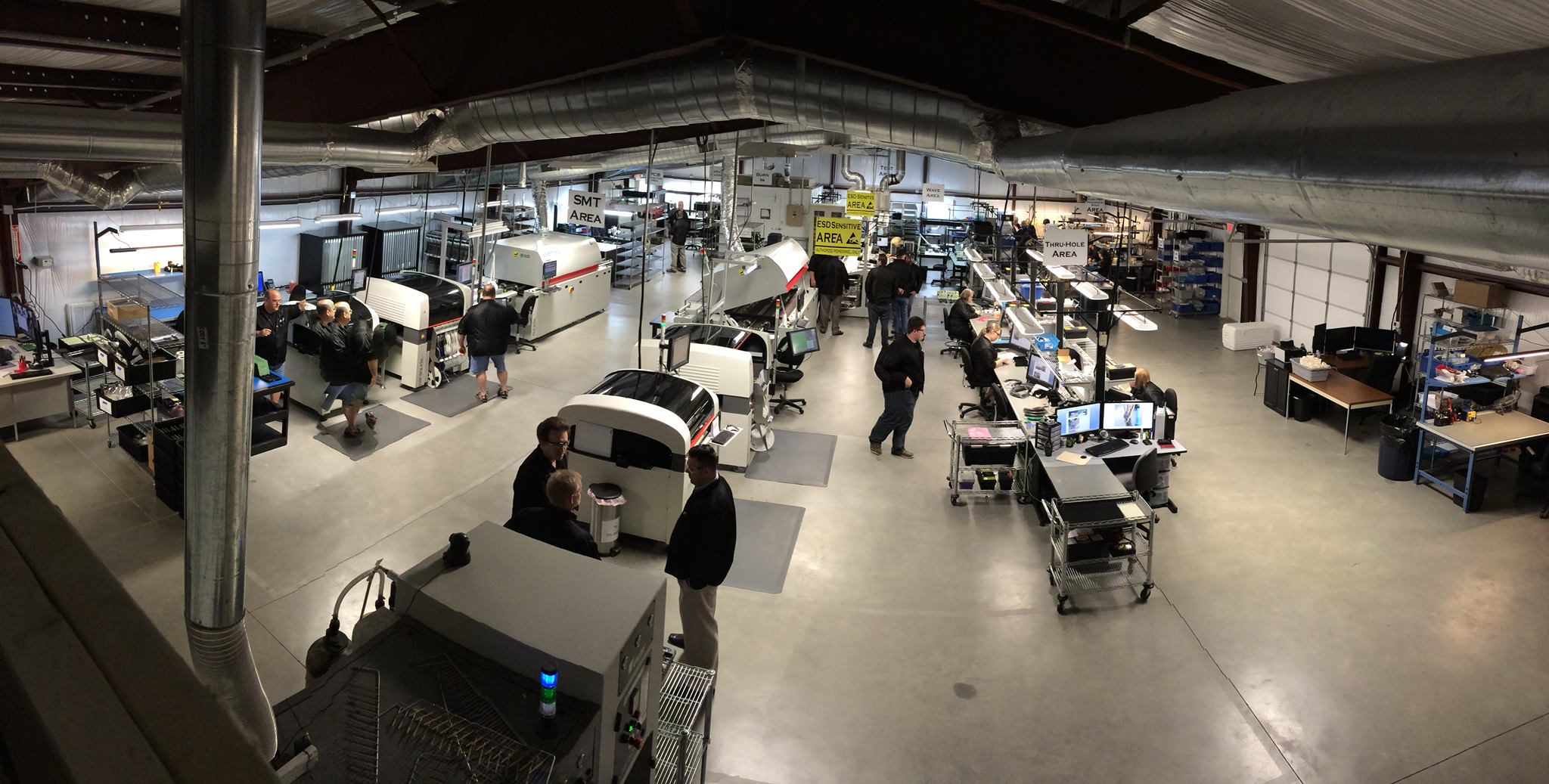

4 STATE-OF-THE-ART SMT LINES
Our 4 SMT lines utilize, high-speed pick-and-place machines, and advanced software and inspection systems to achieve precise part positioning, early error detection, and streamline production.
// Most Frequent Questions
PCB Assembly Services - FAQ
PCB assembly is the process of populating a bare printed circuit board with electronic components to create a functional electronic device. It involves soldering components, such as resistors, capacitors, and integrated circuits, onto the board using surface-mount technology (SMT), through-hole technology (THT), or mixed methods.
- Surface-Mount Technology (SMT): Components are placed directly onto the board’s surface and soldered using reflow ovens. Ideal for small, high-density components.
- Through-Hole Technology (THT): Components with leads are inserted through holes in the board and soldered on the opposite side. Suitable for larger or high-reliability components.
- Mixed Technology: Combines SMT and THT for complex designs.
- Gerber Files: Define the PCB layout, including copper layers, solder mask, and silkscreen.
- Bill of Materials (BOM): Lists all components with part numbers, quantities, and reference designators.
- Pick-and-Place (CPL) File: Specifies component locations and orientations for automated assembly.
- Assembly Drawings (optional): Provide additional instructions for component placement or special requirements.
Turnkey assembly means the provider handles the entire process, including PCB fabrication, component procurement, assembly, testing, and shipping. Full turnkey covers all aspects, while partial turnkey allows customers to supply some components or boards.
DFA involves designing a PCB to optimize the assembly process, reducing costs and errors. Key considerations include component spacing (e.g., 10–30 mils between discrete components), clear silkscreen markings, and avoiding mixed lead-free and leaded components.
Common tests include:
- Automated Optical Inspection (AOI): Checks for missing or misaligned components.
- X-Ray Inspection: Verifies solder joints for leadless components like BGAs or QFNs.
- In-Circuit Testing (ICT): Detects shorts or joint failures.
- Functional Testing: Ensures the board performs as intended.
Leftover components may be stored for future orders or shipped back to the customer. Components with limited use are typically returned.
Yes, we offer consignment options where customers provide components.
