Cable And Wire Harness Assembly

A wire harness is a bundle of wires or cables bound together with straps, cable ties, sleeves, or tape to transmit electrical power or signals. It organizes wiring for easy installation and provides some protection against environmental factors like vibration or abrasion, though it’s typically used in less demanding environments.

A cable assembly is a group of wires or cables encased in a robust outer sheath (e.g., thermoplastic or vinyl) designed to protect against harsh conditions like heat, moisture, or friction. Unlike wire harnesses, cable assemblies are built for more extreme environments and often connect specific components point-to-point.

• Environment: Wire harnesses are used in milder environments (e.g., inside appliances or vehicles) for organization, offering minimal protection. Cable assemblies are designed for harsh conditions, providing robust shielding against heat, moisture, and abrasion.
• Structure: Wire harnesses bundle wires loosely, allowing individual wires to be removed. Cable assemblies encase wires in a single, durable sheath, appearing as one thick unit.
• Cost: Wire harnesses are generally lower-cost due to simpler materials and construction. Cable assemblies are more expensive due to their durable materials.
• Complexity: Wire harnesses often have multiple breakouts and terminations for complex systems, while cable assemblies typically have two ends for point-to-point connections.

• Wire: A single conductor (e.g., copper or aluminum) that carries electricity.
• Cable: Two or more wires bundled together, often with insulation or a protective jacket, to enhance stability and power transmission.

• Wire Harnesses: Used in indoor applications like household appliances (computers, TVs, refrigerators), automotive dashboards, and aerospace systems for organized wiring.
• Cable Assemblies: Common in outdoor or harsh environments, such as military equipment, medical devices (e.g., MRI machines), telecommunications, and automotive systems exposed to weather or heat.

Common industries include electronics, aerospace, automotive, medical, telecommunications, and industrial applications for products like control panels, diagnostic devices, and battery systems.

Lead times vary based on complexity and component availability, typically ranging from 2-4 weeks after receiving all components. Prototypes may take less time, while high-volume orders could take longer.

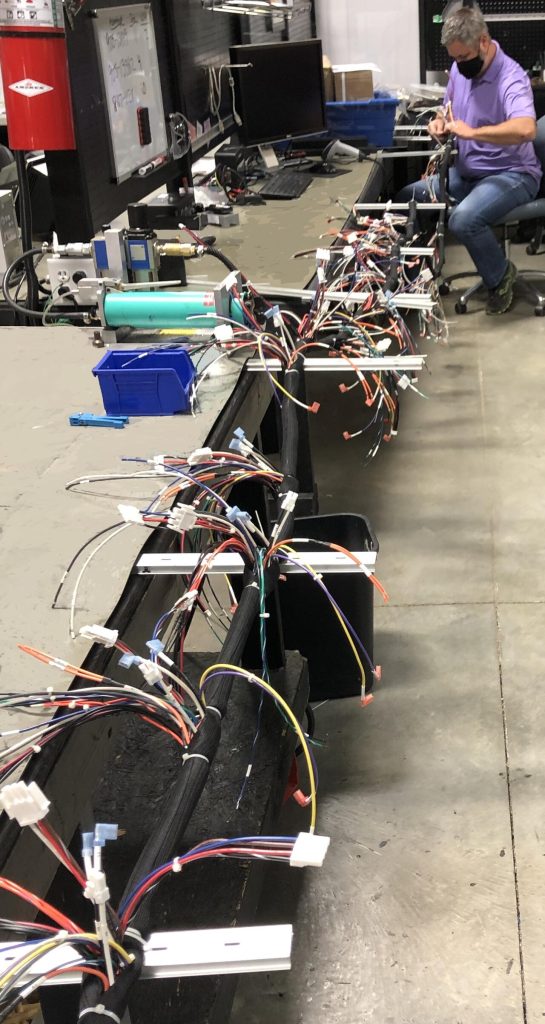

Wire harnesses require customization for specific applications, involving intricate tasks like crimping, soldering, and routing that are challenging to fully automate. Manual assembly ensures precision, especially for complex or small-batch designs, though automation is used for tasks like wire cutting and stripping.

The IPC/WHMA-A-620 is the primary industry standard, outlining requirements for crimping, soldering, and testing. It defines three product classes based on performance needs (e.g., Class 3 for critical systems like medical or aerospace). Other standards, like MIL-STD-454, apply to military applications.

Common tests include:

• Continuity Testing: Ensures proper electrical connections.
• Resistance Testing: Verifies wire integrity and performance.
• Pull Testing: Checks the strength of crimped or soldered connections.
• Functional Testing: Uses a test board to simulate the harness’s performance in its intended circuit.

• Organization: Simplifies installation by bundling wires into a single unit.
• Space Optimization: Reduces clutter in compact systems like vehicles or electronics.
• Safety: Minimizes risks of shorts or fires by securing wires in flame-retardant sleeves.
• Efficiency: Speeds up manufacturing with “drop-in” installation.

Choose a wire harness for indoor or less demanding environments where organization and cost-efficiency are priorities (e.g., inside a computer or car dashboard). Opt for a cable assembly in harsh outdoor or industrial settings requiring protection against extreme conditions.
